Analytical Process Measurement
Leaders in the oil and gas industry, committed to excellence, innovation, and sustainable practices

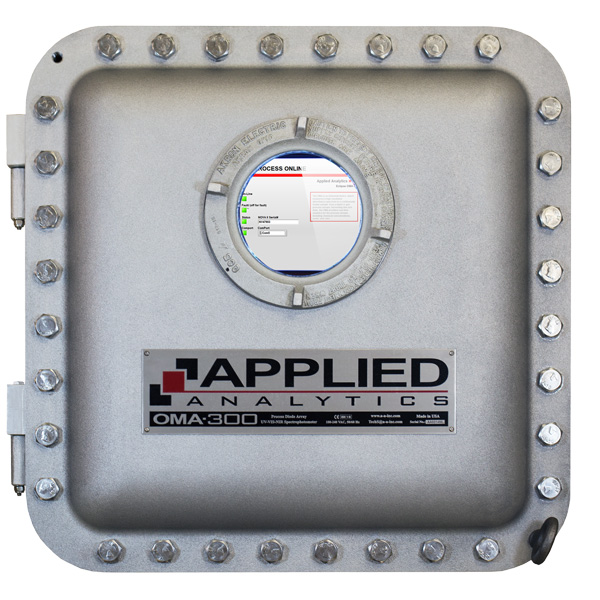

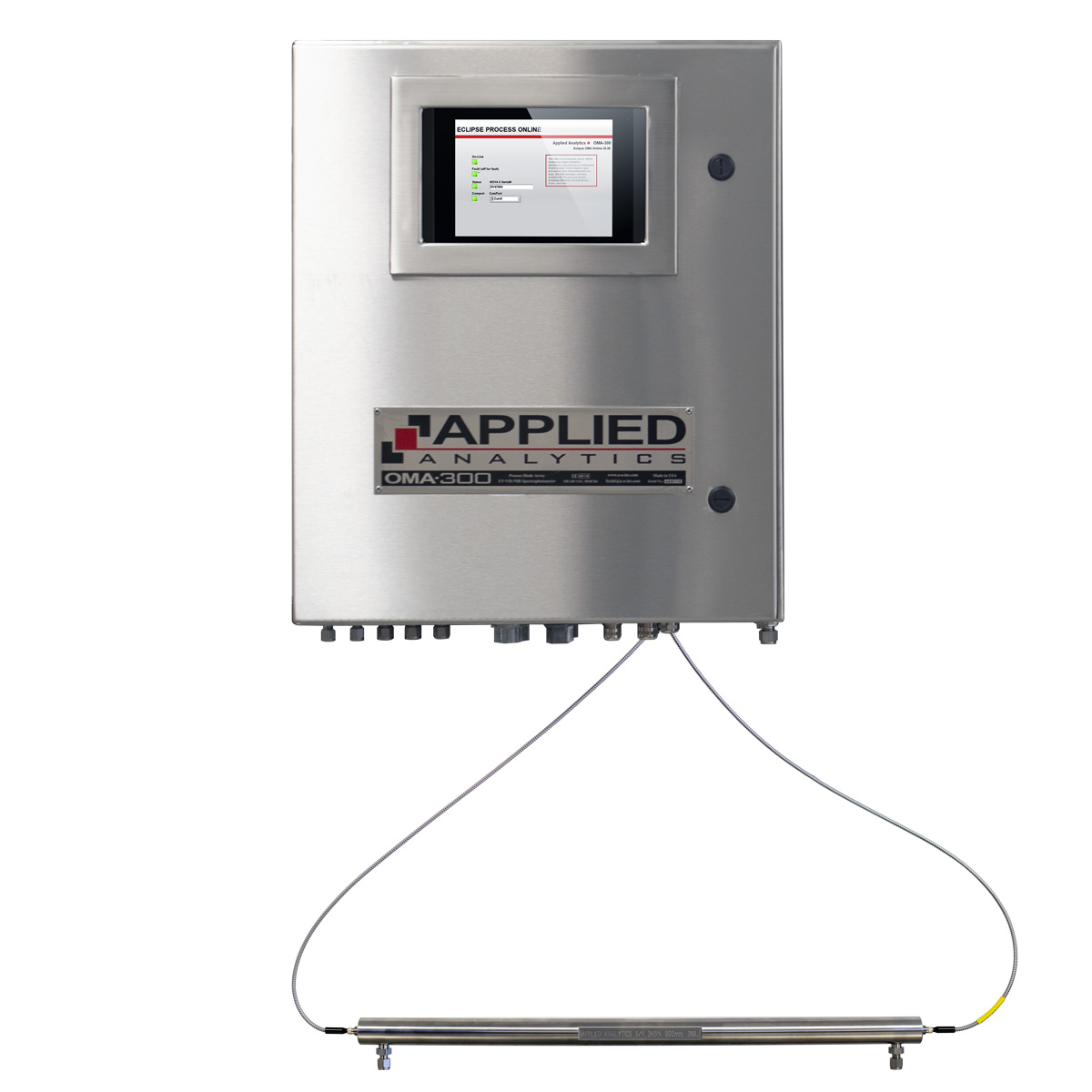

Our OMA-300 UV spectrometer and Modular MCP-200 IR photometer are on a mission to measure both H2S and CO2 in acid gas at sulfur recovery units around the world.

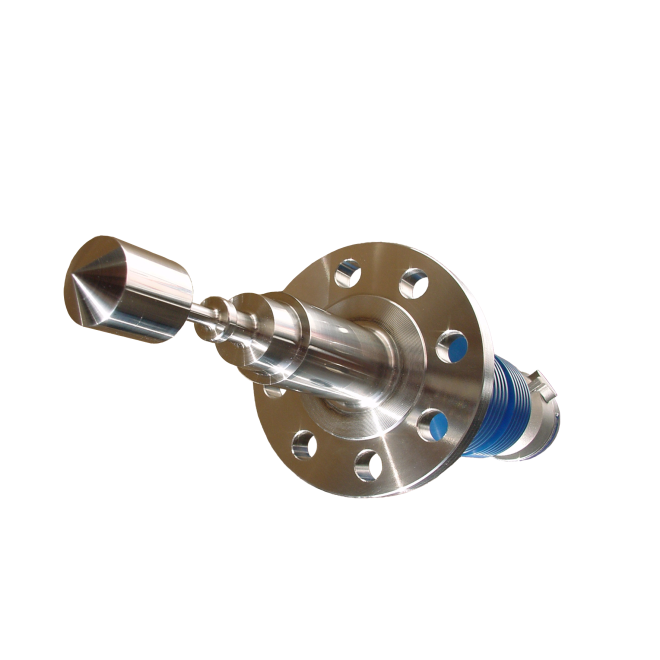

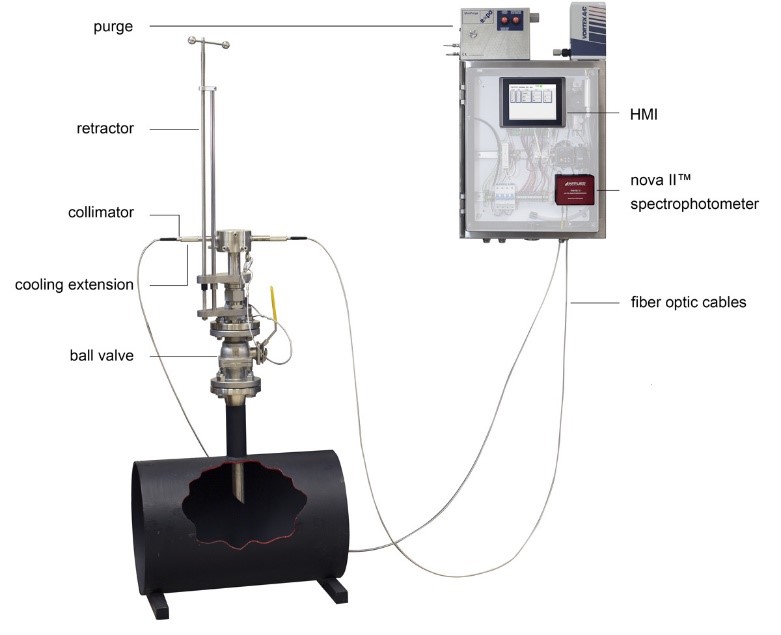

TLG-837 DEMISTER Probe. Unlike other probes found on the market, the self-contained design of the probe allows for the sample to be measured in-place. This, combined with the fiber-optic connections to the probe, ensures that the toxic fluid remains in the process and never enters the analyzer enclosure. Moreover, problems arising from elemental sulfur are a thing of the past with this probe due to the self-contained cold finger. In this setup, process steam is used to cool the probe such that elemental sulfur vapors are condensed into a liquid and removed from the sample gas. This allows for a clean delivery of process vapor to the measurement cell at the top of the probe.
Design AAI in accordance to this website
AGC Instruments Ltd. is a leading manufacturer of Gas Analysis Solutions to all users requiring a Quality Control or identification of their gas stream. Based in Ireland, we have over 50 years of experience in providing our customers with their “Total Gas Analysis Solutions” Specifically gas Chromatograph.
Discharge Ionisation Detector-DID
The AGC Discharge Ionisation Detector-DID has outstanding stability and performance giving low ppb measurements. Based on using a non radioactive, universal and concentration dependant design, the detector generates high energy photons through an electrical discharge in Helium. The metastable Helium then ionises all components except Helium.
Linearity >106
Sensitivity<1 ppb of CH₄ (APPLICATION DEPOENDENT)
Response Time<0.5 seconds
Gases Required
Carrier Gas Ultra Pure He N6.0 ; 40ml/min
Discharge GasUltra Pure He N6.0 ; 20ml/min
Actuator GasClean Dry Air @ 3 bar
Purge GasUltra Pure He N6.0 ; 10ml/min

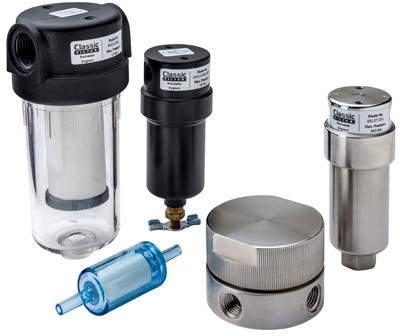

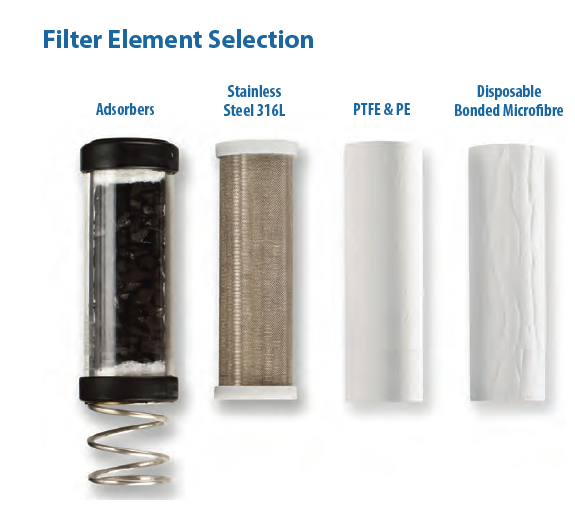

Classic Filters are a UK based manufacturer with a global distributor network specialising in particulate & coalescing filter housings and elements.
Delta C Technologies is a privately owned, Canadian company located in Salmon Arm, British Columbia. Founded in 1989, Delta C specializes in the design and manufacture of capacitance based watercut analzyers. Our unique design approach, coupled with our uncompromising commitment to quality redefined capacitive watercut technology.

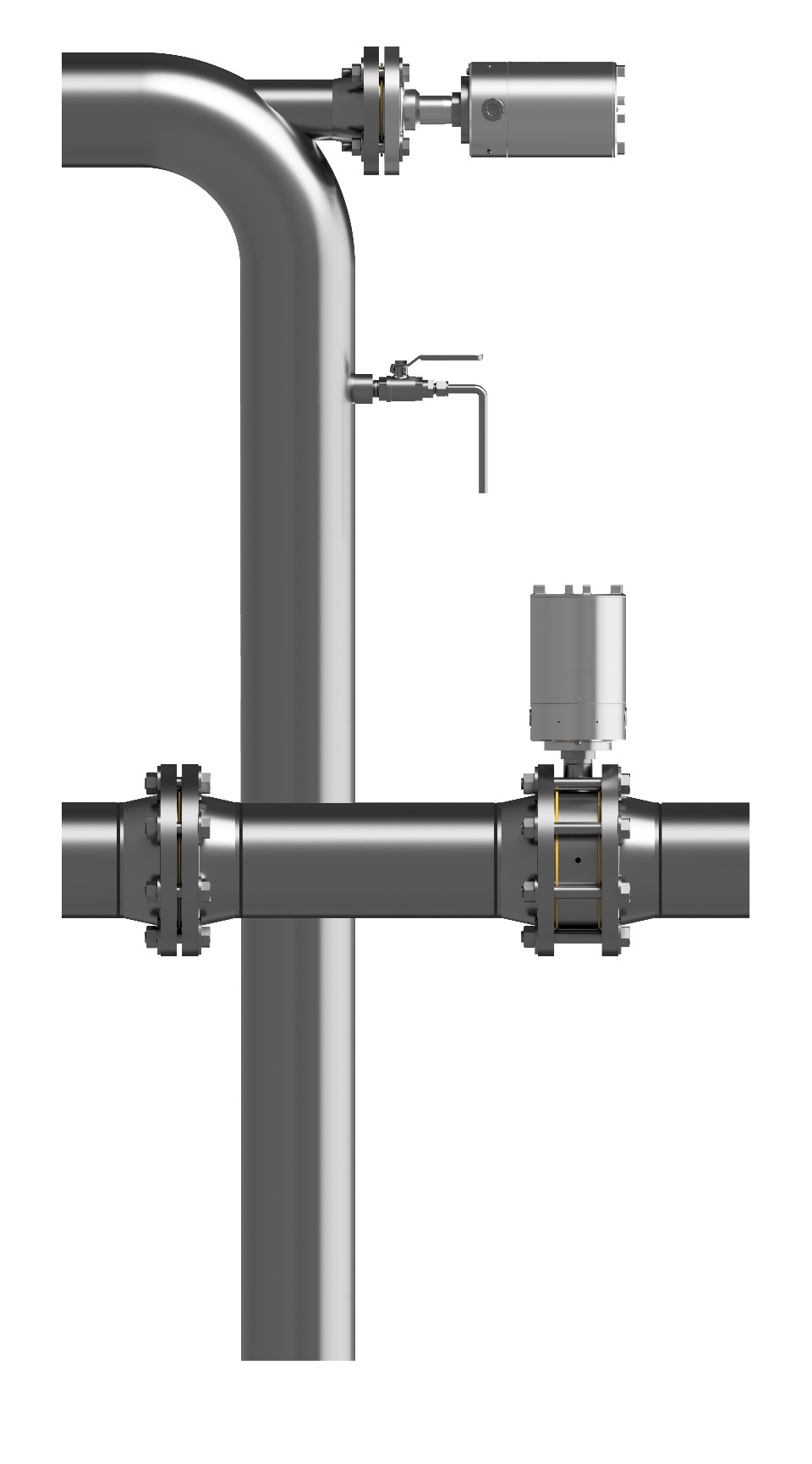

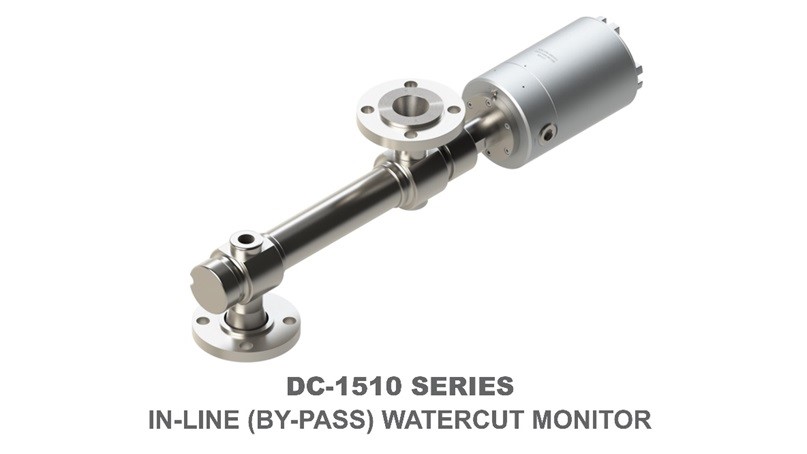

DC-1510
Flanged Inline
ANSI B16.5
ANSI B16.5 flanged inline sensor for capacitive high-sensitivity measurement of quality of fluid processes in upstream and midstream petroleum, fuel, lubricant other industrial applications.

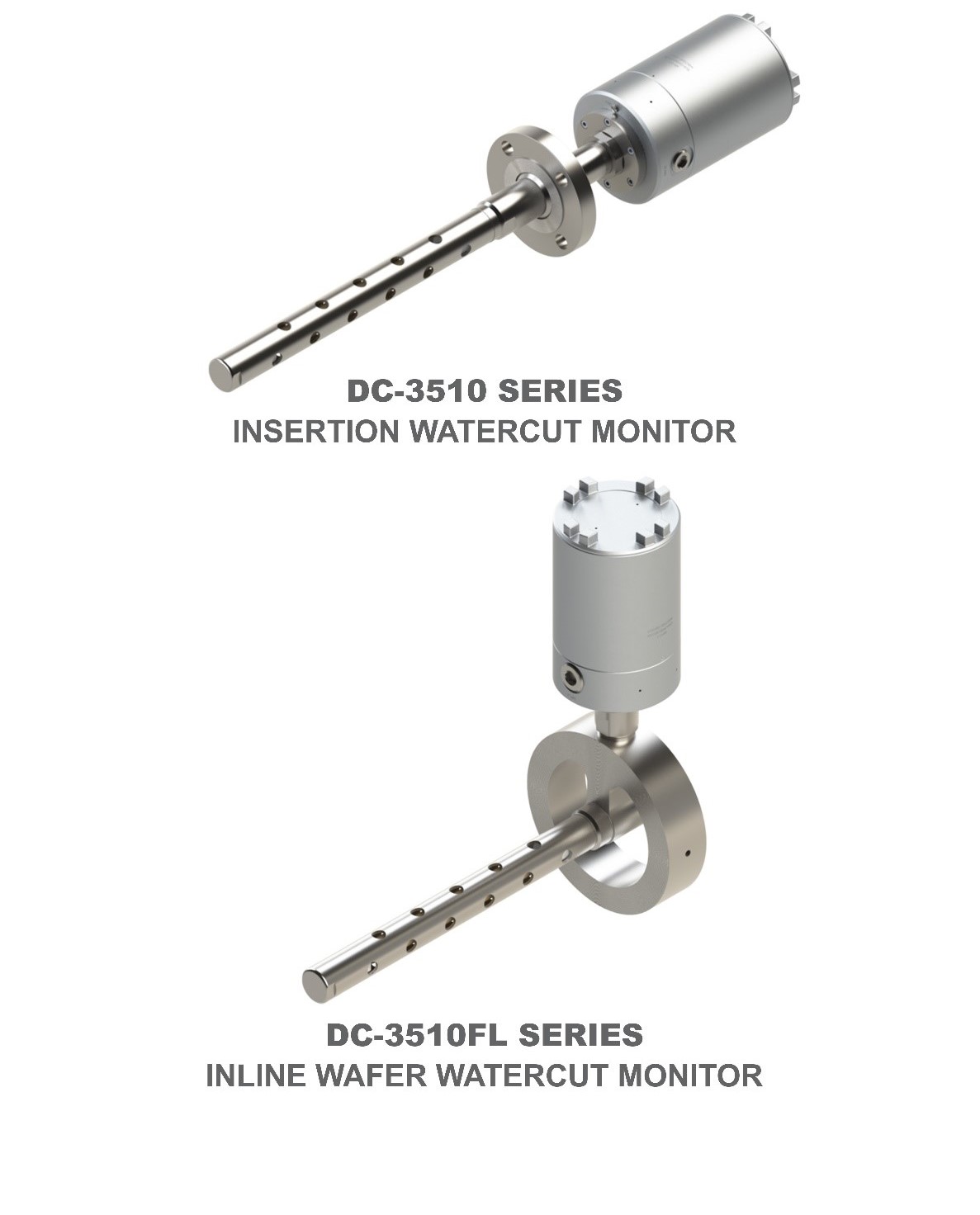

DC-3510F
Flanged Insertion Watercut Analyzer
ANSI B16.5 flanged insertion sensor for capacitive high-sensitivity measurement of quality of fluid processes in upstream and midstream petroleum, fuel, lubricant and other industrial applications.
It was 2007 when eralytics started to revolutionize the petroleum testing industry. Going from a start-up company and driven by a great passion for making analyzers for the petroleum industry eralytics was founded in 2007 by four experts of the petroleum industry.
The first product ERAVAP, a fully automated vapor pressure tester was the first vapor pressure tester on the market that featured a color touchscreen and a modern industry PC with USB and Ethernet interfaces.
Hydramotion, formed in 1988, Specialists in viscosity measurement - original patented technology.
Energy loss is measured using specially developed technology and is not affected by process conditions which trouble the drag method.
LFE, founded in 1979, develops and manufactures specialized analytical instrumentation and components for process gas and water analysis.

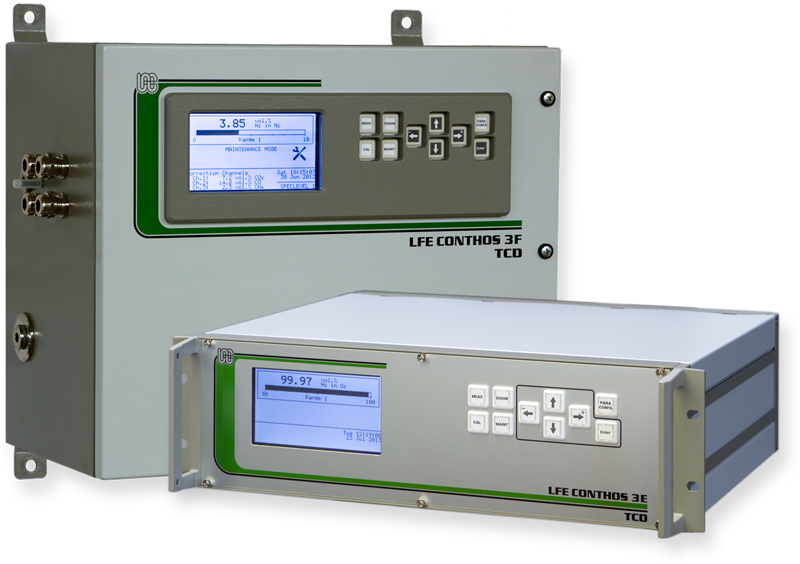

Hydrogen (H2) Analzyer - TCD (thermal conductivity detector)

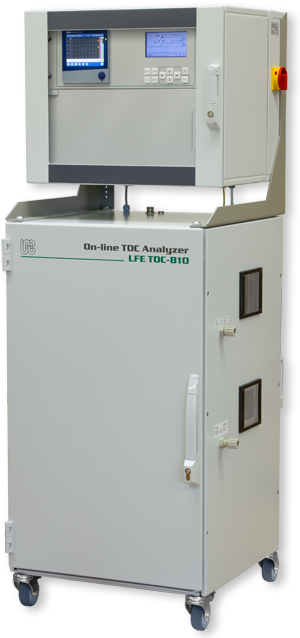

Total Organic Compound (TOC) Analyzer - World's 1st continuous real time analyzer. With oxidation method.
Continuous analysis with nearly 100% carbon converison
- High temperature oxidation for the complete conversion of all organic carbon compounds.
- Continuous analysis with short sample injection cycles (typ. < 10 sec).
- Continuous sample conditioning for improved real time analysis.

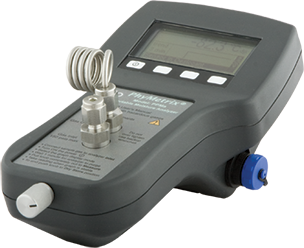

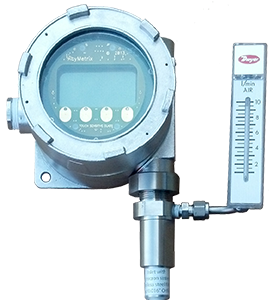

Original Co-Founder and Inventor of Cosa Xentaur Hyper Thin Film Aluminium Oxide 1992 Dr. Ani Bedrossian-Omer & Dr. Bedros Bedrossian The desire to continue to implement the latest technological advancement in moisture led to the parting of Cosa Xentaur and Develop Phymetrix in 2006.
Texas Valves & Instruments sells gas sampling systems, sampling cylinders, constant pressure cylinder for a competitive price.

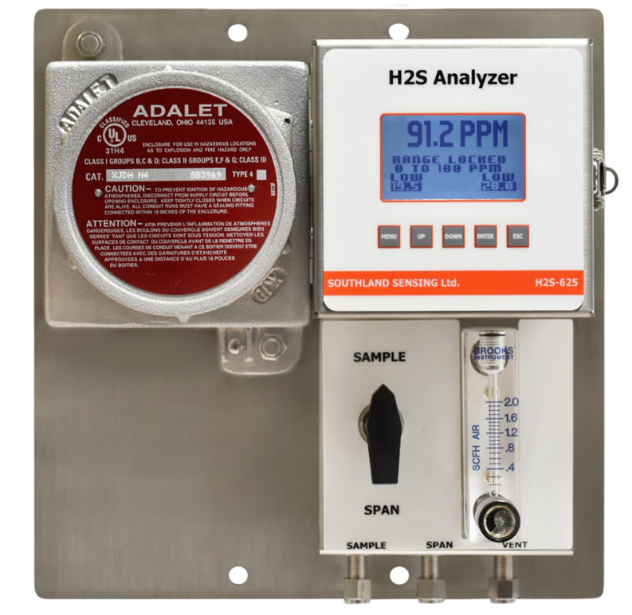

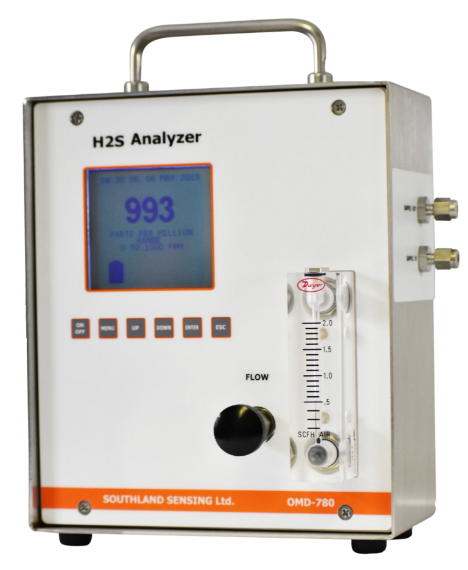

Southland Sensing Ltd, founded in 2013, produces and packages a wide range of online analyzers, transmitters and portable meters for trace, percent and purity oxygen analysis. SSO2 analyzers are outfitted with a comprehensive electronics package, USB flash drives and other advanced features.

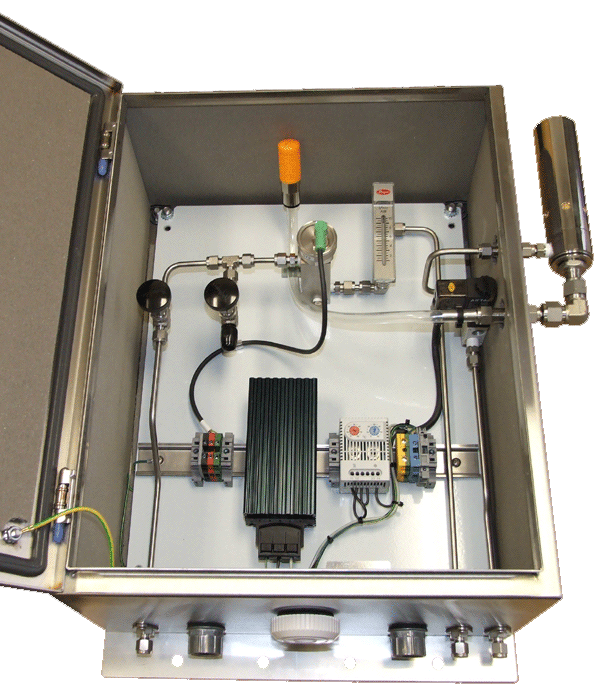

Packaging includes general purpose, outdoor enclosures, wall mount, panel mount, ATEX and IECEx approved products for hazardous areas as well as a variety of additional configurations.

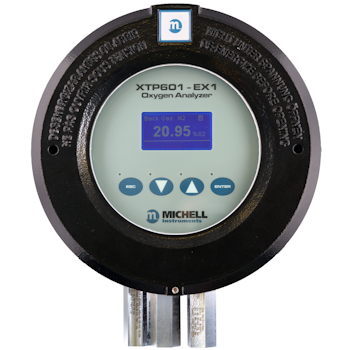

Michell XTP601 - Paramagnetic
General purpose or ATEX, UKCA, IECEx, cQPSus, TR CU & Ex hazardous area certified models SIL2 Capable
Ranges available: 0...0.5 % up to 0...50 % & 20, 80 or 90...100 %
Touch-screen display allows calibration or adjustment without the need for a hot works permit
Intrinsic error (accuracy) is better than 1 % full scale
Zero range stability better than 0.25 % of range per month
Outputs include RS485 and two 4...20 mA (following NAMUR NE 44 standard)
Low cost of ownership due to minimal maintenance and no consumable parts
Moisture in Gas

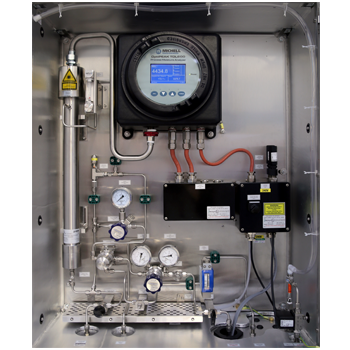

Moisture in Natural Gas Analyzer - TDLAS OptiPEAK TDL600
D-MET system: Factory-ready for varying gas compositions. For example, after stream blending or injection of shale gas or biomethane to a network.
Operating range down to 1 ppmV
Sour gas compatible
Simple installation and setup
Lowest maintenance
ATEX, IECEx, UKCA and cQPSus certified
Proven Michell Instruments quality: 40 years' expertise in moisture measurement built into the design

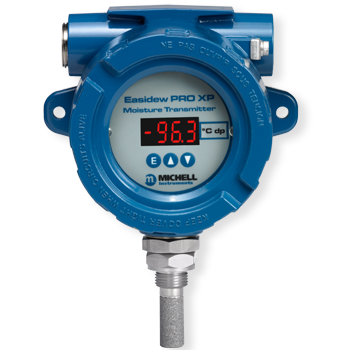

Moisture Transmitter - Easidew PRO XP
Measurement ranges -110 up to +20 °Cdp (-166 to 68 °Fdp)
Global explosion / flameproof certification
Accuracy ±1 °Cdp (±1.8 °Fdp)
2-wire 4...20 mA output
Traceable 13-point calibration certificate
450 bar (6527 psi) pressure rating
Low cost of ownership and easy maintenance with sensor exchange program
3/4" UNF industry standard process connection
EN 10204 3.1 material certification
Moisture in gases and liquids
Integral display meter
Oxygen service cleaned

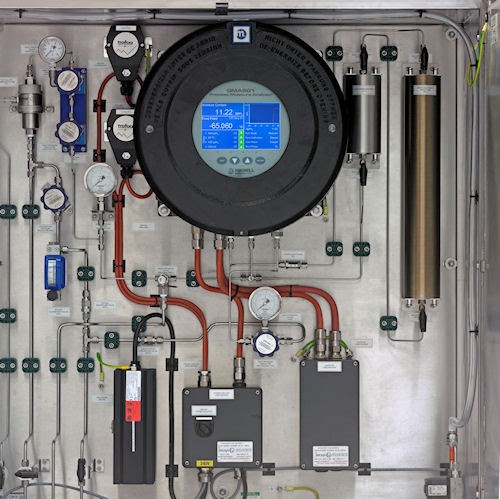

Process Moisture Analyzer - Michell QMA601 -Quartz Crystal Microbalance (QCM) technology
Fast and reliable measurement from 0.1 to 2000ppmV
Accuracy of ±0.1ppmV at <1ppmV and 10 % of reading from 1 to 2000ppmV
Maintenance free for 3 years
Built-in verification of customer process gas
IECEx, ATEX, UKCA, TR CU Ex certified for Exd flameproof, cQPSus certified for explosion proof
Intuitive color HMI with touch-screen keypad; no 'hot work' permit require
14 internal alarms
21 predefined carrier gases and 3 user-defined gases
Proven Michell Instruments quality: 40 years of expertise in moisture measurement built into the design
Moisture in Liquid
Michell Liquidew I.S.
Simple, cost-efficient operation and low maintenance
Retrofit functionality, easy to integrate into existing sampling or distribution systems
High integrity moisture in liquid measurement from 0.01 ppmW to saturation point
Multi-channel with up to four completely independent measurement channels
Robust design for undisturbed operation in many non-polar liquids over a long time
Three 4...20 mA configurable outputs and digital Modbus RTU-based communication
Replaceable sensor element with Michell Calibration Exchange Service for reliable cost-efficient calibration
NIST and NPL traceable calibration
EExd version available
Optional, highly reliable and cost-effective 2-wire, loop-powered O2 transmitter
Hydrocarbon Dewpoint

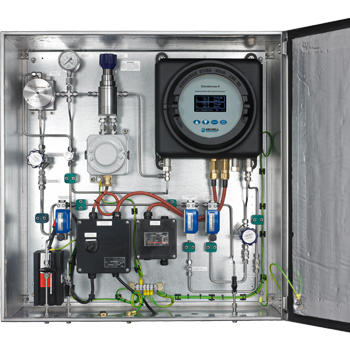

Hydrocarbon Dew-Point Analyzer - Michell Condumax II
Fully automatic on-line analysis
Objective, highly repeatable measurements
0.5 °C hydrocarbon dew-point accuracy
Fundamental chilled mirror principle
Patented detection technique
Self-cleaning
No purge or cooling gas required
Optional water dew-point analysis
Modbus RTU
IECEx, ATEX, UKCA, cQPSus and GOST Ex certifications
