Continuous Emission Monitoring System
Alam Mulia continues to provide excellent customer service by offering integration of its principals' products as a value-added service.
Continuous Emission Monitoring System (CEMS) are used to provide data for compliance with regulatory requiremens for the control, monitoring, and reporting of pollutant emissions which have been endorsed by Malaysia Department of Environment (DOE) and link to iRemote.
Industrial emissions monitoring regulations vary from country to country, and the measurement technology must be assessed for suitability and in accordance with local requirements and standards. Our CEMS monitoring solutions are fully compliant with the latest European and International regulations & standards:
Industrial emissions monitoring regulations vary from country to country, and the measurement technology must be assessed for suitability and in accordance with local requirements and standards. Our CEMS monitoring solutions are fully compliant with the latest European and International regulations & standards:
GAS CEMS

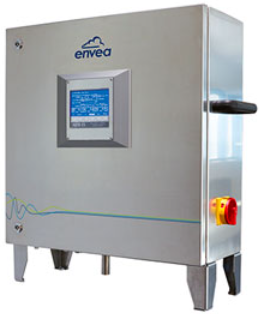

IN-SITU CLOSE-COUPLED MULTI-GAS ANALYZER - MIR IS
A complete "all in one compact" system, for multi-gas measurements, based on the field-proven MIR 9000 analyzer and on-board SEC sampling system
Fast & simultaneous measurement of up to 10 gases among: HCl, NO, NO2 (NOx), SO2, CO, CO2, HC, CH4 (TOC), HF, N2O, O2, at the sampling location
• Integrated sample drying & system conditioning; no sample line necessary
PARTICULATE CEMS
Approved particulate measurement systems for continuous measurement of particulate emission concentrations to meet and exceed national and international regulations. Choosing the best monitoring solution for your particulate emission and velocity monitoring application can be confusing. The video below, as well as the Products Selector can help guide you to choose the right ENVEA particulate and velocity measurement technology for your application and needs.
OPACITY QAL1 APPROVED PARTICULATE CEM - STACK 710
QAL1 approved particulate CEM which meets US EPA PS-1 requirements for Opacity monitoring from combustion stack.
Robust multi corner cube reflector provides truer reflection of transmitted light compared to traditional "mirror type" reflectors providing greater confidence in measurement.
PARTICULATE CEM FOR WET GAS STREAMS - STACK 181 WS
US EPA PS11 capable ProScatter™ particulate CEM for the extractive sampling and measurement of particulate in saturated wet gas streams.
𝘌𝘭𝘦𝘤𝘵𝘳𝘰𝘋𝘺𝘯𝘢𝘮𝘪𝘤™ QAL1 APPROVED PARTICULATE CEM - QAL 991
QAL1 approved particulate CEM providing high quality emission measurement for low dust concentrations from dry industrial processes including Baghouses and Cartridge Filters.
The QAL 991 is an approved particulate CEM (Continuous Emission Monitor) designed to meet and exceed CEN standard EN 14181 / EN 13284-2. Particularly suited to monitoring emissions from industrial processes regulated under the European Waste Incineration Directive (WID) and Large Combustion Power Plant Directive (LCPD), the PCME QAL 991 is also proven in other industrial processes controlled with high efficiency bag filtration. The instrument holds QAL1 approval specified in EN 15267-3, under both MCERTS and TUV.
- Directive 2010/75/EU - Industrial Emissions Directive (IED), the main EU instrument regulating pollutant emissions from industrial installations
- Integrated Pollution Prevention Control (IPPC) Directive,
- Directive 2001/80/EC on the limitation of emissions of certain pollutants into the air from large combustion plants (the LCP Directive)
- Directive (EU) 2015/2193 - Medium Combustion Plant Directive (MCPD) regulating pollutant emissions from the combustion of fuels in plants.
- Directive 2000/76/EC on the incineration of waste (the WI Directive)
- Emissions monitoring & reporting ( UNFCCC & Kyoto Protocol )
- Regulation (EU) 525/2013 - Climate Monitoring Mechanism
- CPCB guidelines for Continuous Emission Monitoring Systems issued in Aug 2018.
- Environmental Quality (Clean Air) Regulations CAR 2014.
- Directive 2003/87/EC on Emissions Trading - establishing a scheme for greenhouse gas emission allowance trading within the Community.
- European standard EN 16267, EN 14181 for quality assurance QAL 3, QAL2, QAL 1, AST…
ENVEA's CEMS monitors and measurement systems are also in accordance with EPA standards in the USA, as well as being approved and certified by various laboratories and organizations around the world such as:
Dr. Födisch Umweltmesstechnik AG is a leading manufacturer of CEMS monitoring air pollutants, dust and flow. Our measuring devices “made in Germany” have been used in operation worldwide for more than 30 years now.

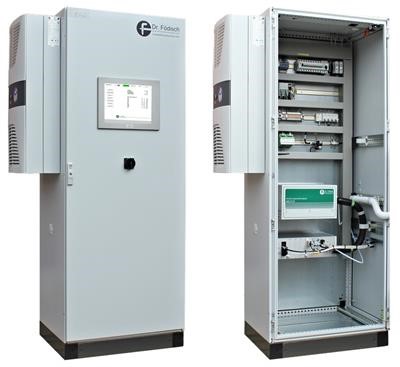

Extractive measuring system for continuous emission measurement of pollutants in flue gas and for process control modularly structured hot gas analyser system (without gas cooler), compact 19" format, up to twelve infrared components, field-proven components, modern photometer technology, long operation times, high reliability (6 months maintenance interval)
